Tag Archives: Photo Booth

PocketWizard Photo Booth Kit

We’re so excited to introduce the PocketWizard Photo Booth Kit!  It’s a complete PocketWizard PlusX radio trigger kit that’s easy to set up and is a fun addition to any type of party of event. Whether you are a professional event photographer or a hobbyist who wants to bring a little fun to your next party, you are going to love it!

What’s in the PocketWizard Photo Booth Kit?

  • 3 PocketWizard PlusX Transceivers
  • 1 PocketWizard Pedal
  • Flash sync cable set
    • Locking PC sync cable
    • 3.5mm (1/8”) miniphone cable
    • 6.5mm (1/4”) phono adapter
  • 1 Remote Camera Cable
    • You will need to select the appropriate cable when you order.  Check our Cable Finder to identify the one you will need.
  • PocketWizard G-Wiz Vault storage bag

Use this kit in conjunction with your own camera and flash.

How to Set Up your Photo Booth

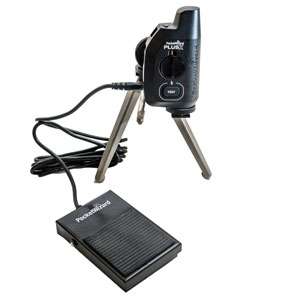

Connect the pedal to one of the PlusX radios. Elevate the PlusX at least 6-12 inches off the ground. Use a tripod or light stand for best results. Set it to Channel 1.

Put a second PlusX in your camera’s hot shoe and also set it to Channel 1. Connect the PlusX to your camera with the included remote camera cable. Place the camera on a tripod or sturdy surface. For best results set the camera to manual focus and lock down the focus.

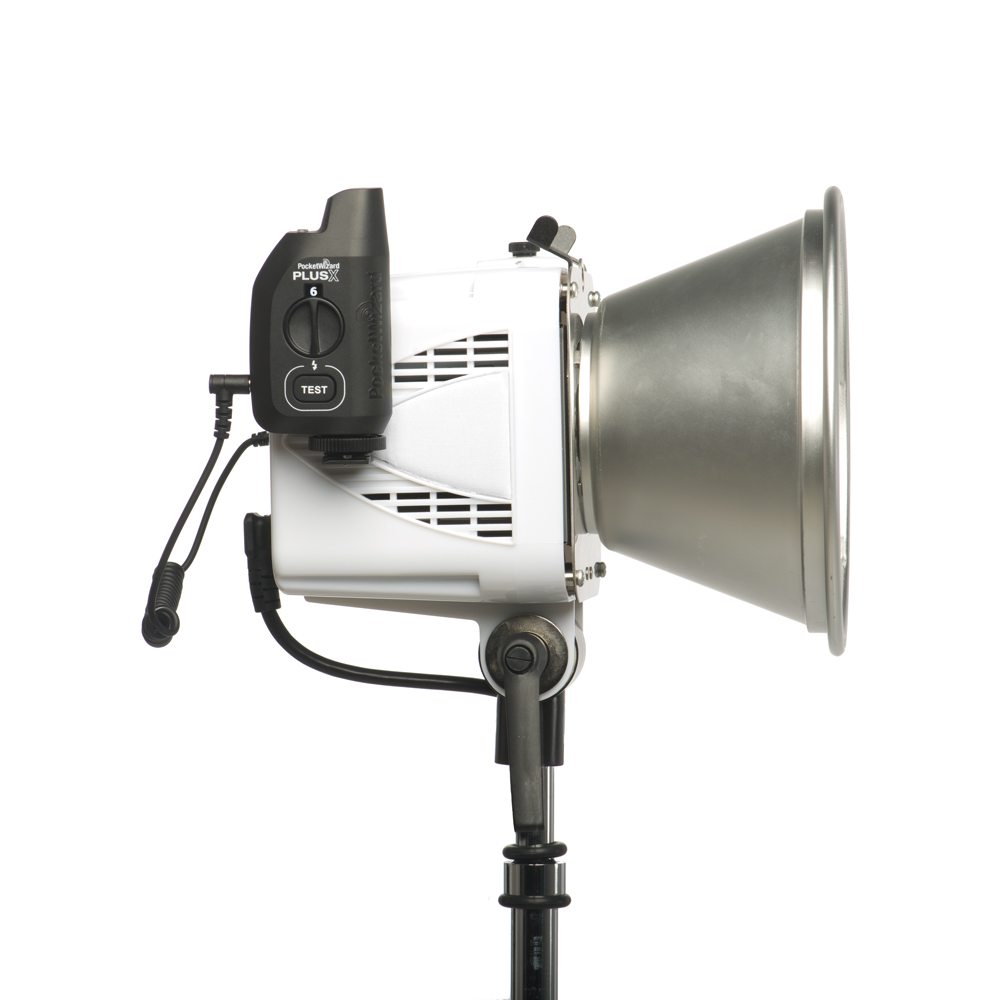

Connect the third PlusX to the flash via the appropriate flash sync cable. Set this PocketWizard to Channel 2. We used Channel 1 and Channel 2 in our example but you can use any Channel you like, just be sure to use the same Channel for the radios connected to the camera and foot pedal and use a Channel that is one higher on the PocketWizard connected to the flash. This is called Relay Mode.



Use any type of photography light that you choose as long as it has a sync port for a flash sync cable.

The guests simply push the pedal with their foot to take their photo. Add a fun backdrop and props and you are good to go!

We set one up at our summer company picnic!  Good thing we’re not camera shy!

Click here to find the PocketWizard Photo Booth Kit on Amazon!
